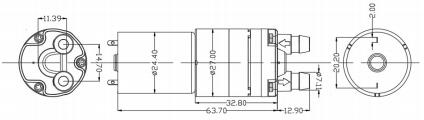

OUTILNE DRAWING
Coffee machine
|
BASIC REFERENCE
|
|||
|
item |
Technical parameters |
item
|
Technical parameters
|
|
appearance |
No scratches, clear markings,clean |
Sealing pressure |
≥3bar
|
|
Rated voltage |
DC12V |
Sealing pressure |
Normal temperature water or hot water |
|
Rated current |
≤0.18A |
Operating environment temperature |
1°~60° |
|
rate of flow |
Flow rate 12000ml/min ± 10% at 0bar
|
Operating environment humidity |
0~56%RH |
|
life span |
＞ 1000h, (at 0bar, open for 30s/stop for 10s |
Vacuum negative pressure |
≤-45Kpa |
|
noise |
Distance 50cm ≤ 55dB (under pumping state) |
malleation |
≥75Kpa |
|
Locked rotor current |
≤0.4A |
temperature rise |
＜65K |
|
remarks |
The tail of the sample motor does not come with a lead, which needs to be developed according to the customer's needs. |
||
